BioCore™ – Modular Bioprocess Control System

BioCore™ is a high-performance, modular industrial control system designed for monitoring, automation, and precise regulation of bioprocesses. Its flexible architecture enables seamless integration with a wide range of sensors, actuators, and peripheral devices, supporting applications from laboratory-scale bioreactors to pilot systems and large-scale photobioreactors (PBRs).

Key Features

• Supported Fermentation Types
  • Batch Fermentation
  • Fed-Batch Fermentation
  • Continuous Fermentation
• Sensors & Controls
  • Hamilton pH, DO, Dencytee
  • Watson-Marlow peristaltic pumps
  • Bronkhorst Digital Mass Flow Controller
  • Heating Jacket & Chiller Contrrol
• Process Control & Automation
  • PID Configuration
  • Cascade Control
  • Recipes management
  • User Scripting
  • Software aided sensor calibration process
• Monitoring & Visualization
  • Real-Time Data Plotting (zoom, pan, export)
  • Modern, Responsive User Interface
  • Specialist editable SCADA HMI
  • Built-In Display, Secure Remote VPN Access, Mobile Compatible
• External Integration & Communication
  • API (for embedding into other industrial systems)
  • Inter-reactor communication (multi-unit coordination)
• Alarms & Event Management (SMS, e-mail, push notification)
• Audit Logging & Traceability
• Batch reporting (PDF, signed)
• Fermentation Data Export (CSV)
• Clearly separated user roles (User, Administrator, Specialist)

Technology Stack

• Linux-Based (debian) industrial control system
• Multi-Architecture Support (amd64, arm64, arm, riscv64)
• APT-Based package Deployment & Updates
• High-Performance JavaScript Runtime (Highly optimized Nodejs / Embedded V8 JavaScript engine)
• Modern PWA Web Application (Web Components Based UI)

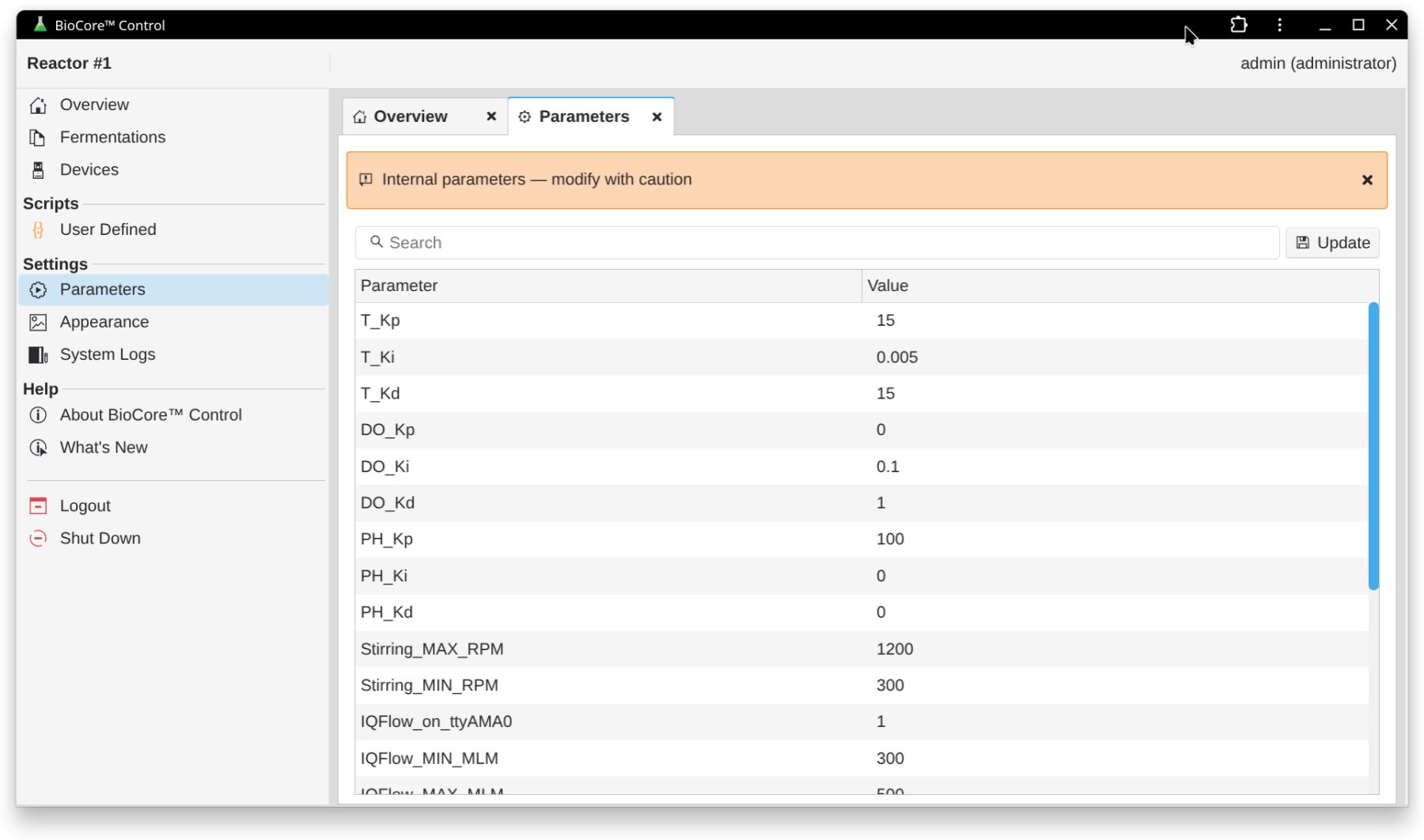

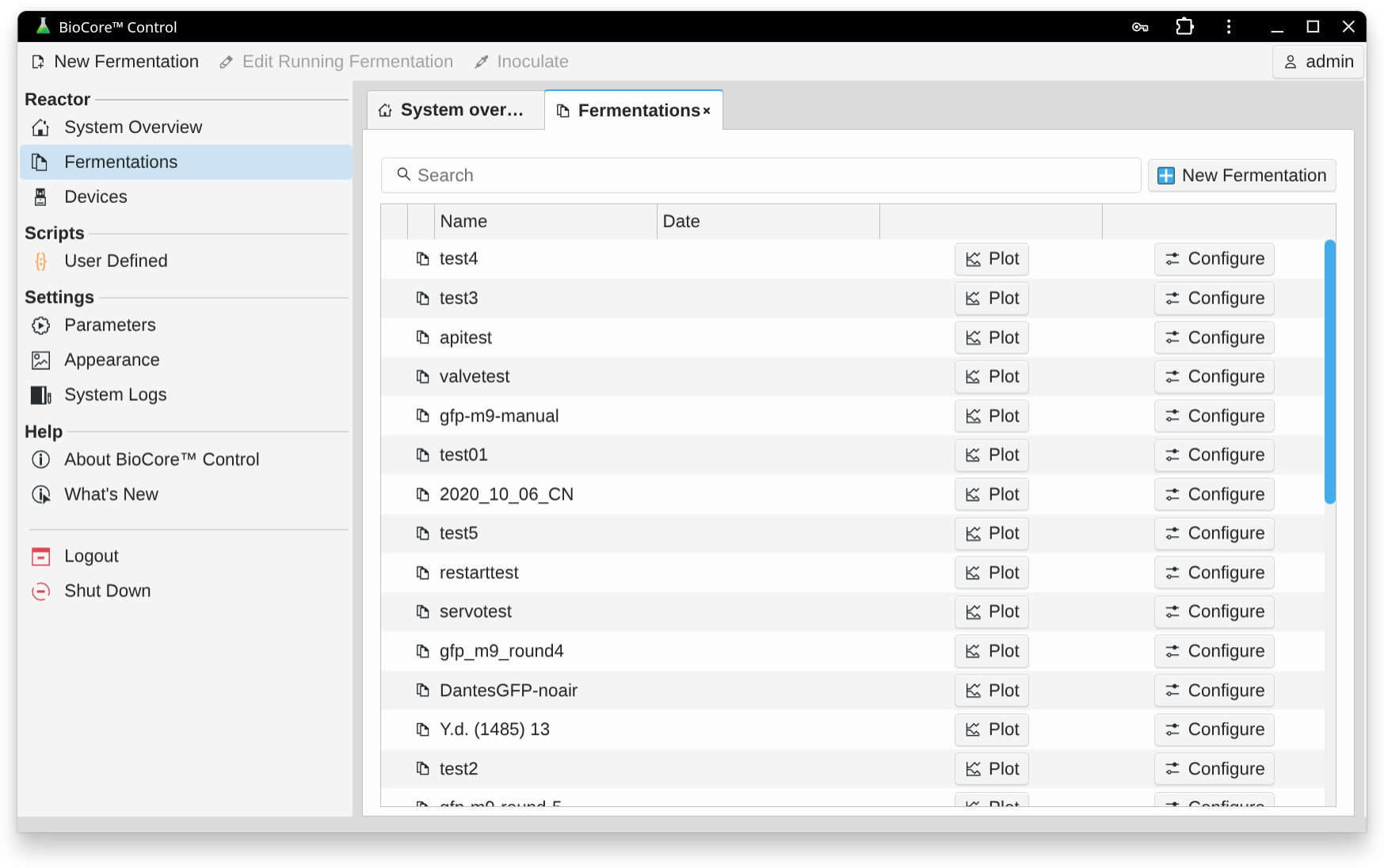

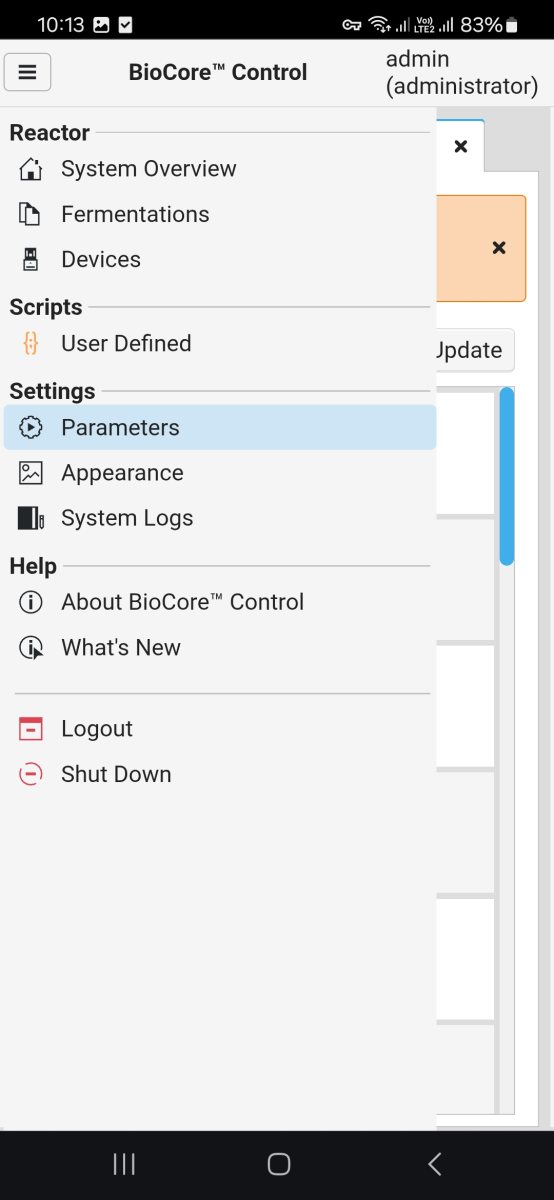

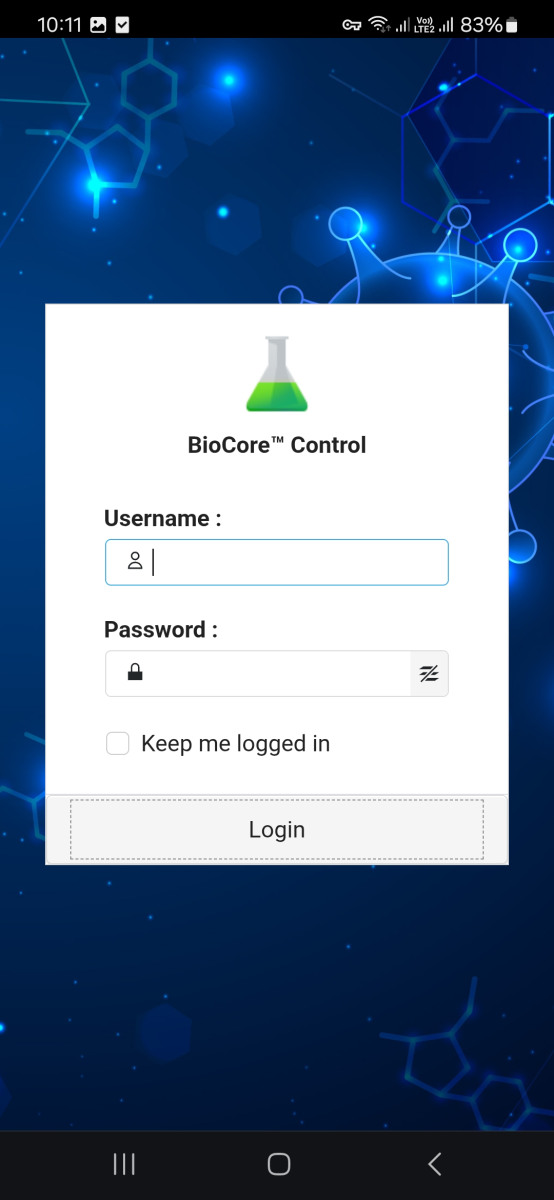

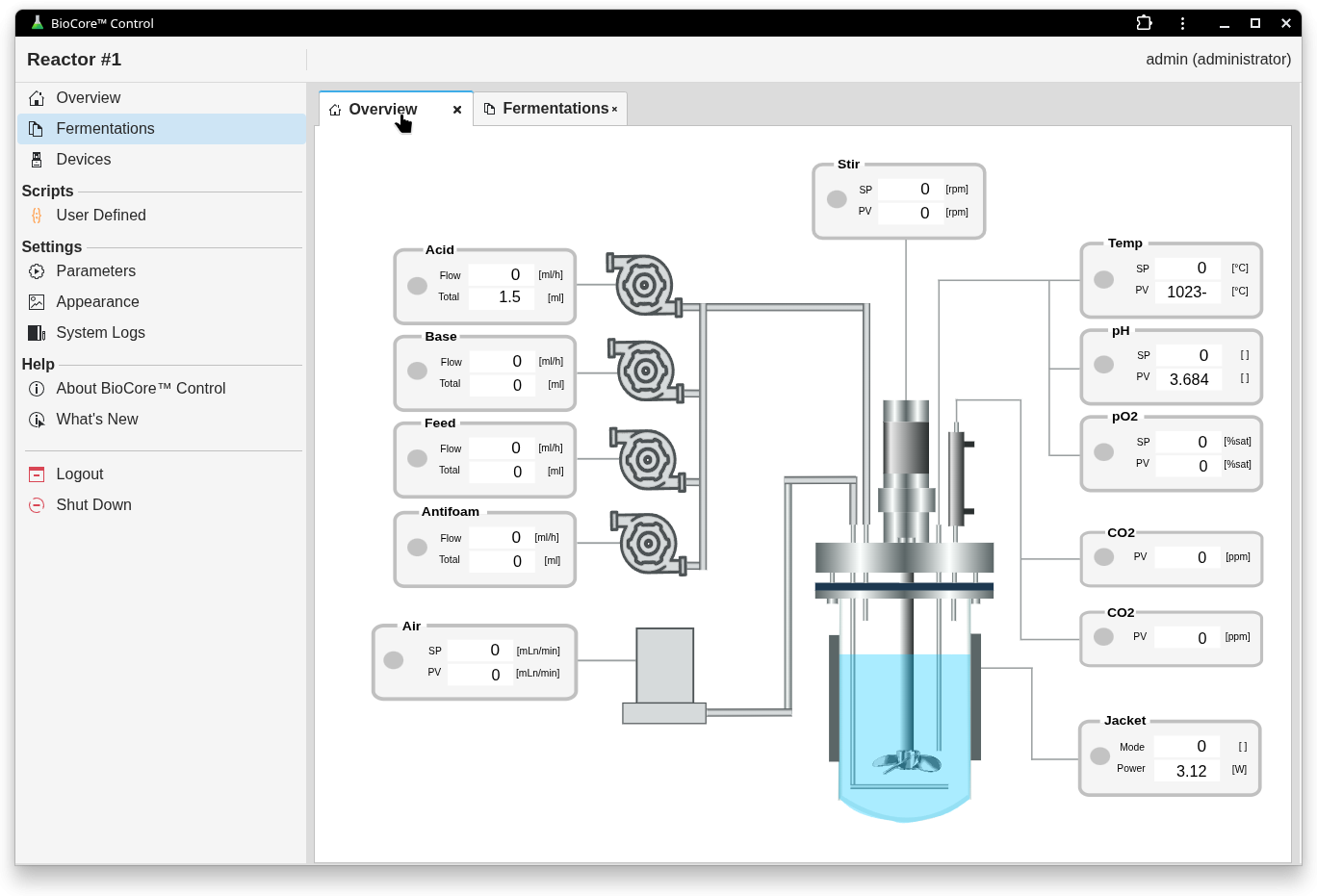

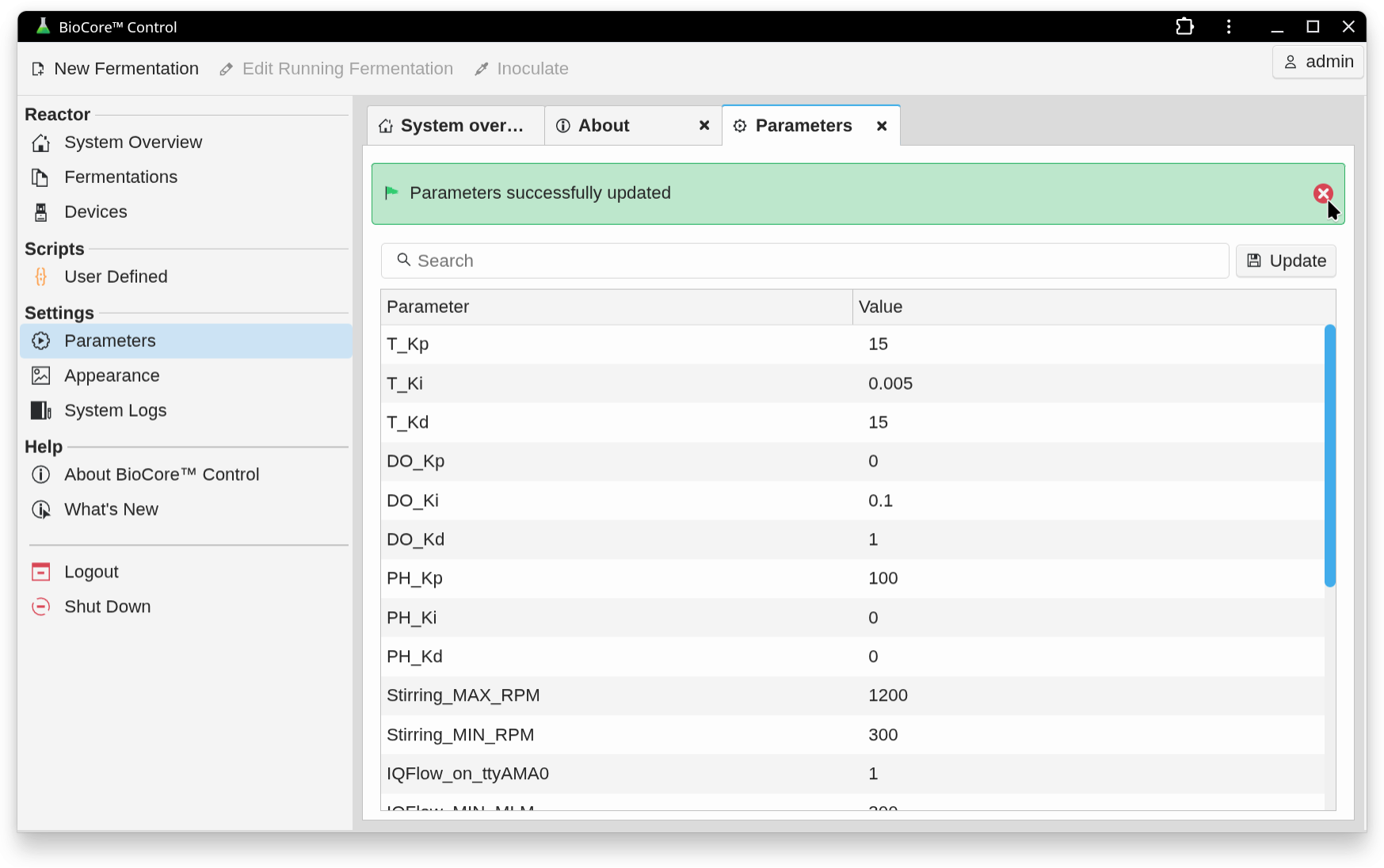

UI Screenshots (in progress)

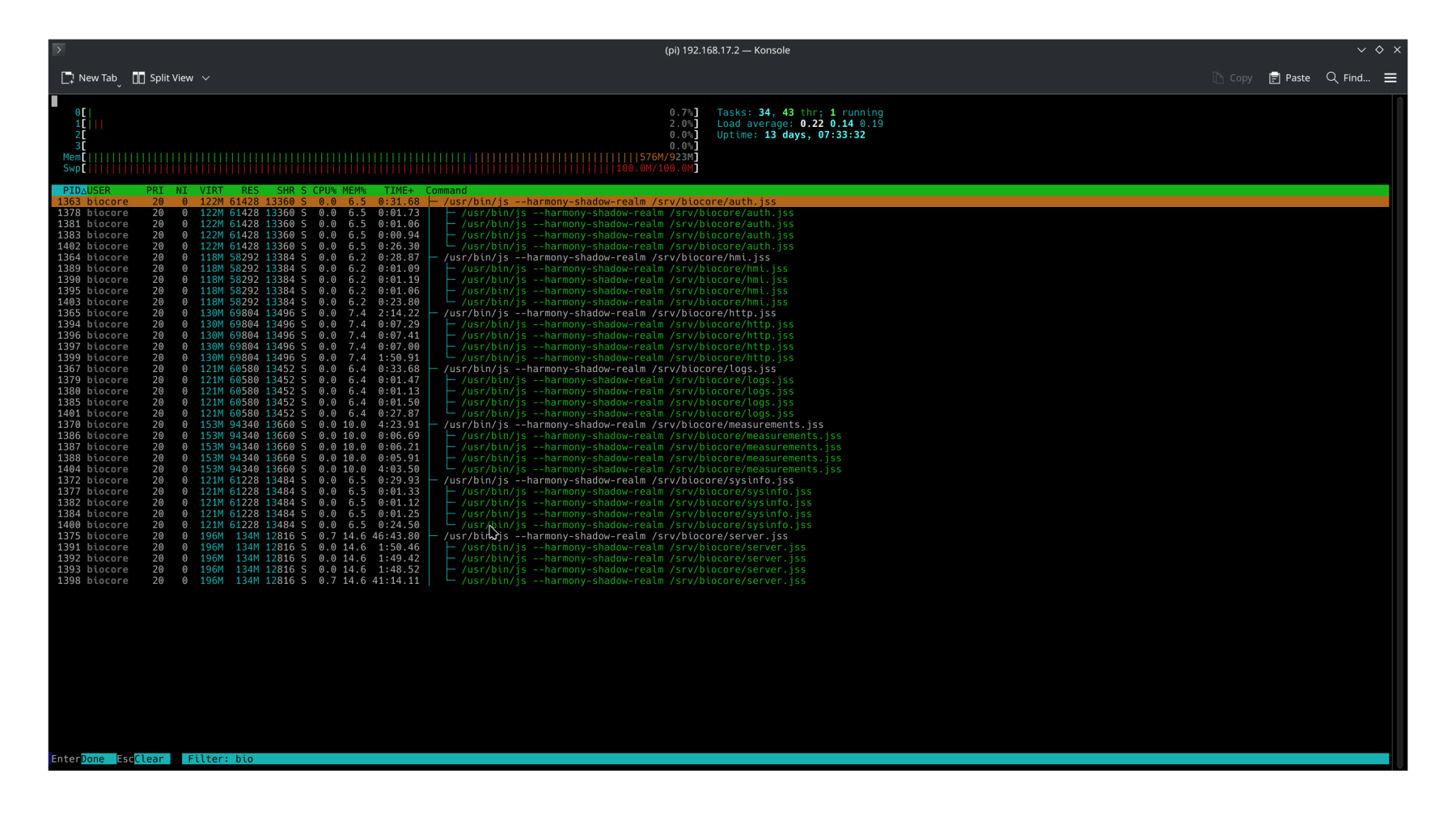

Backend Screenshots Featuring MicroService Architecture
